EFR 80W CO2 Laser Tube for Laser Engraver Cutting Machine

Chats with Experts

EFR 80W CO2 Laser Tube for Laser Engraver Cutting Machine

Save A$176
/
Incl. GST
Tax included.
Note: LightBurn software is bundled with our machines and is not sold separately. To purchase the software, please select it on the relevant machine page.All LightBurn software downloads are final unless canceled on the same day of purchase.The software includes 1 year of updates from the date of activation.The license key has an expiry date - a year from when you first activate it. When it "expires," it's still valid, you just don't get updates any more. If you download a version of the software released after your license expires, it won't work, but any version released before the key expired will continue to work.
DESCRIPTION

Precision Engraving:

  • Our CO2 Laser Tubes produce stable laser beams to make precise marks on a wide variety of materials.

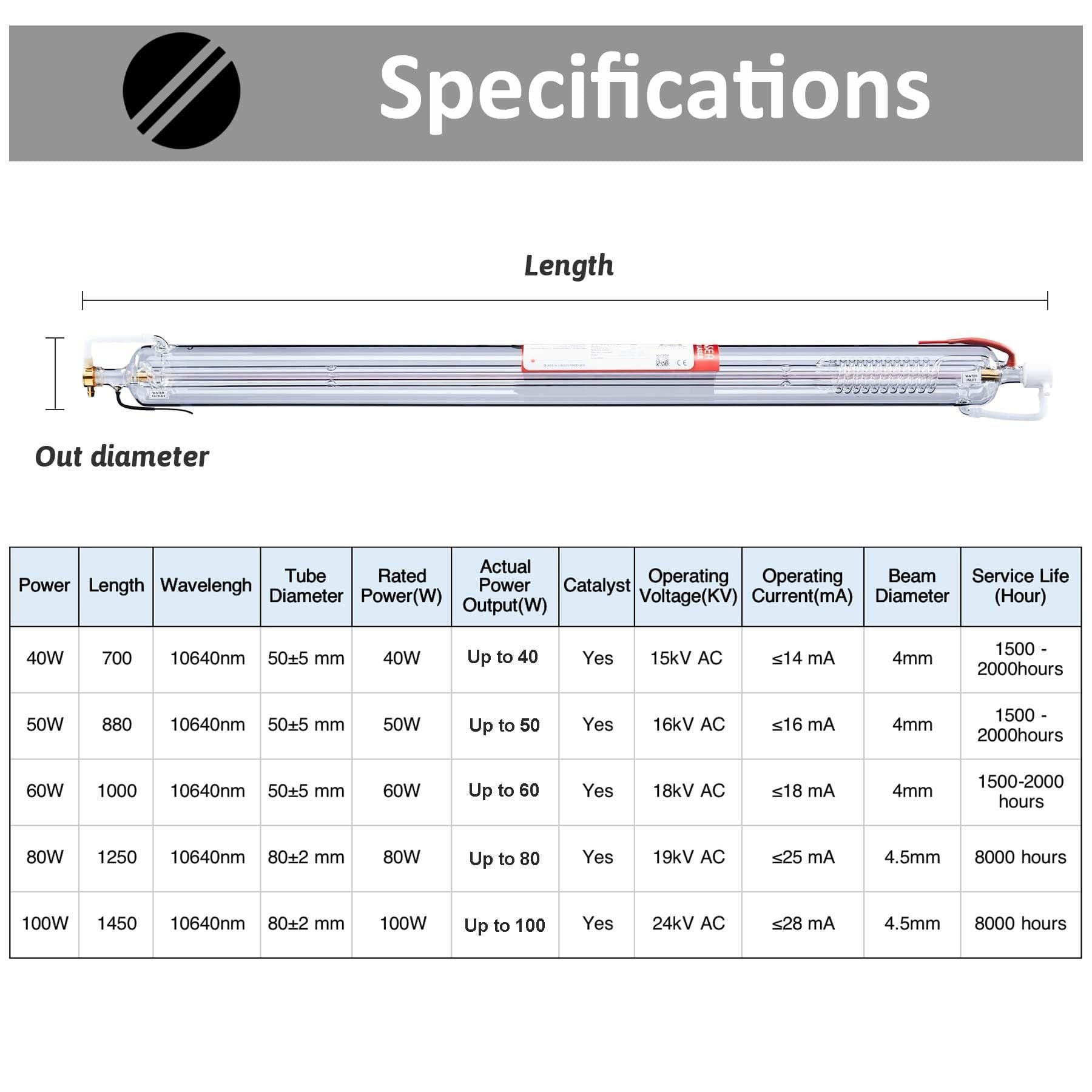

Power:

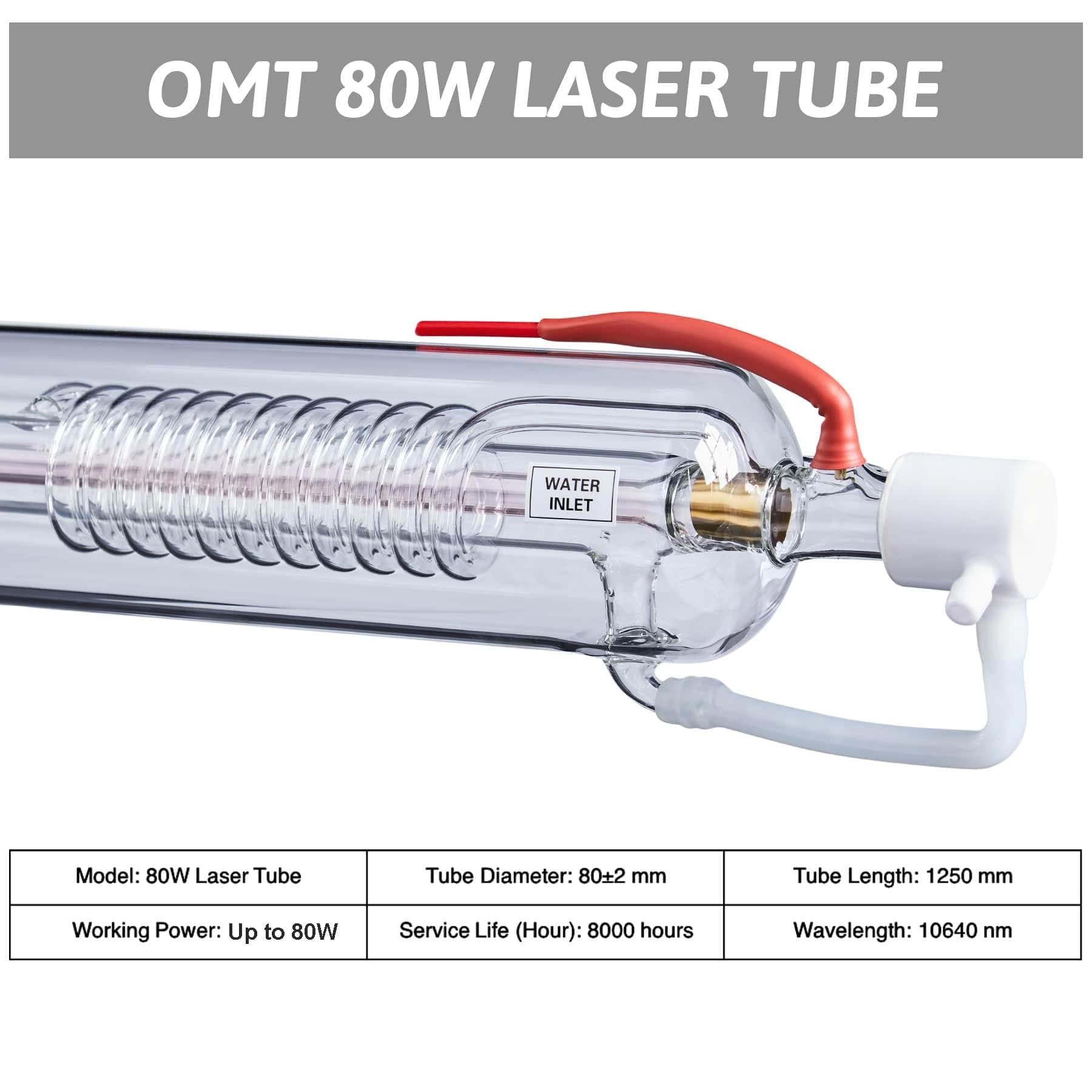

  • Rated Power: 80W
  • Peak Power: 95W
  • Beam Diameter: 5 mm
  • Operating Voltage: 19 KV
  • Wavelength: 10,640 nm
  • Cut up to 1" thick plywood and acrylic/plexiglass

Lifetime:

  • 80W Borosilicate Glass CO2 Laser Tube with an estimated lifetime of up to 8,000 operation hours depending on power setting usage and water cooling performance
  • PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
  • Low Power 10–40% = 7,000–8,000 Hours
  • Moderate Power 40–70% = 5,000–6,500 Hours
  • High Power 70–100% = 3,000–4,000 Hours

Easy to Install:

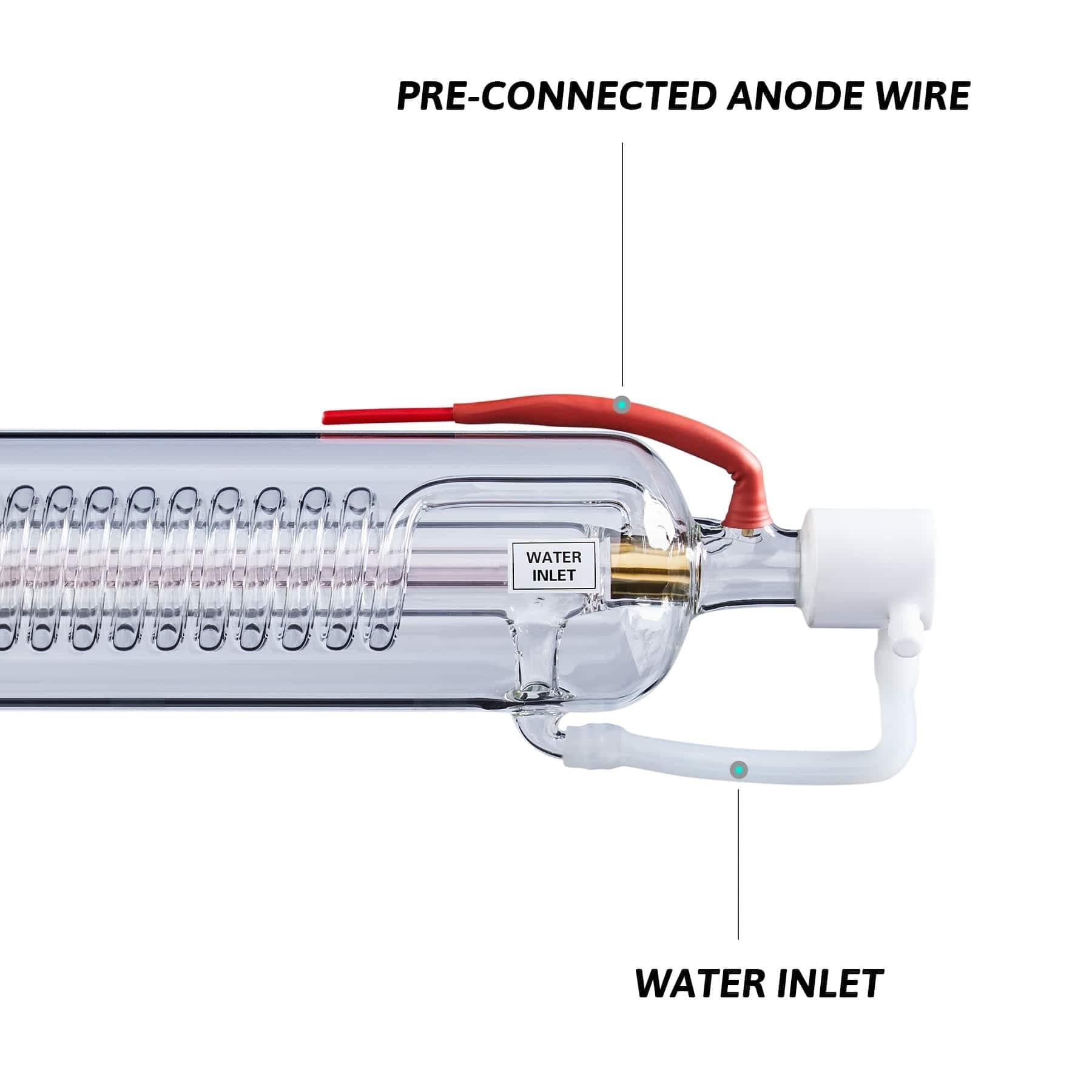

  • The preinstalled Cathode and Anode Wires allow quick and effortless setup.

Additional Features:

  • Product Length: 4’ 1” (1250 mm)
  • Product Diameter: 80mm
  • Net Weight: 6.61 lb
  • Allowable Humidity: <85%

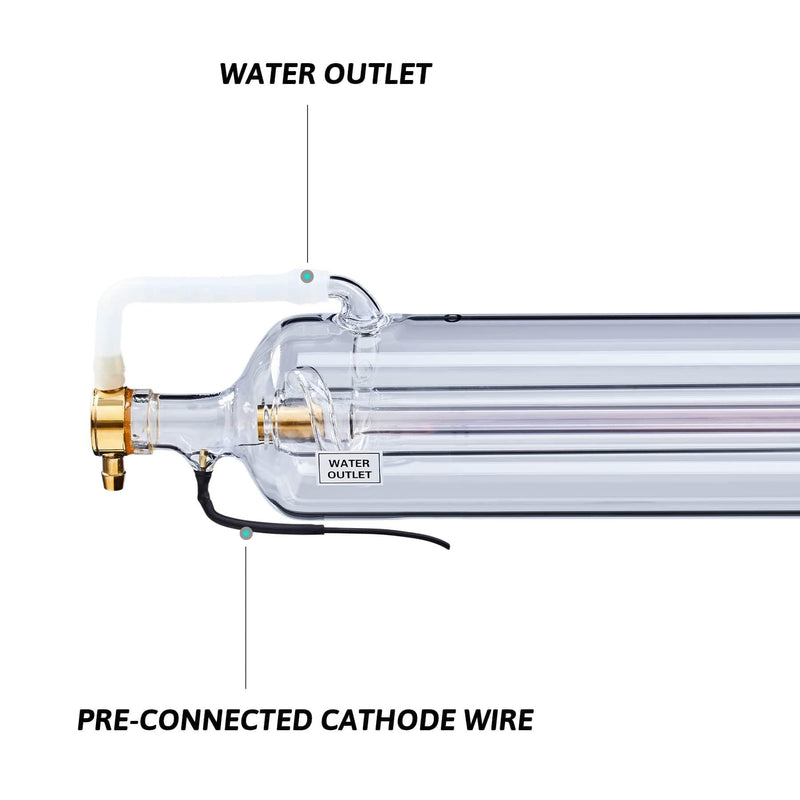

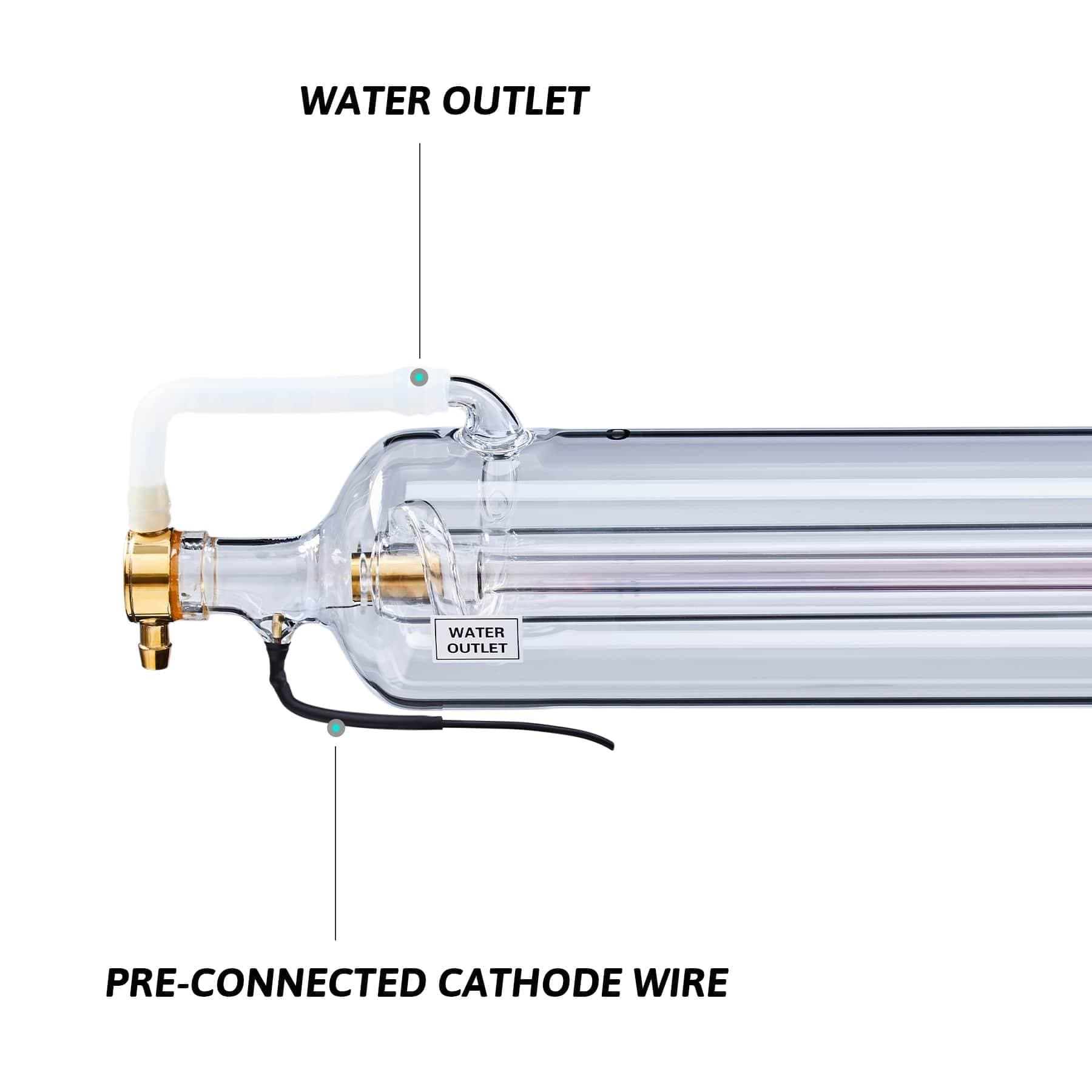

  • The water outlet and inlet allow efficient flow of cooling water.
  • Made out of borosilicate glass, copper, and plastic
  • Optimum cooling water temperature between 60-70°F (15-19°C)

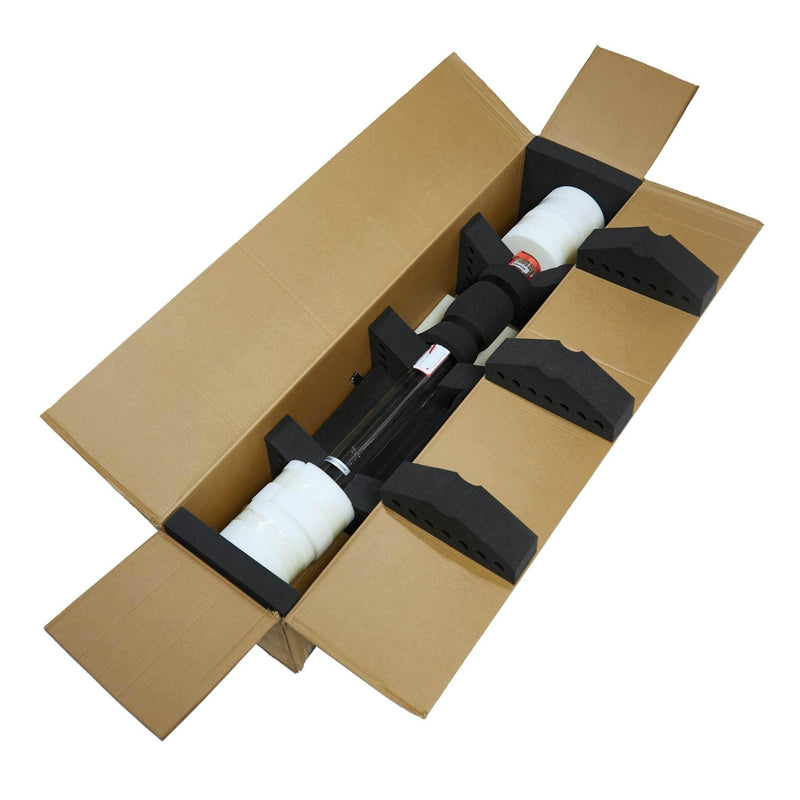

Package Includes:

  • 1 x 80W Laser Tube
  • 1 x User Manual (English)

Warranty:

  • No need to worry! We offer a 1-year warranty on all CO2 laser tubes 80W and up.

Certifications:

  • FDA Compliant
  • CE Certification
  • ISO9001 Quality Certification
