ENGRAVING & LASER CUTTING IN THE PERFECT PACKAGE

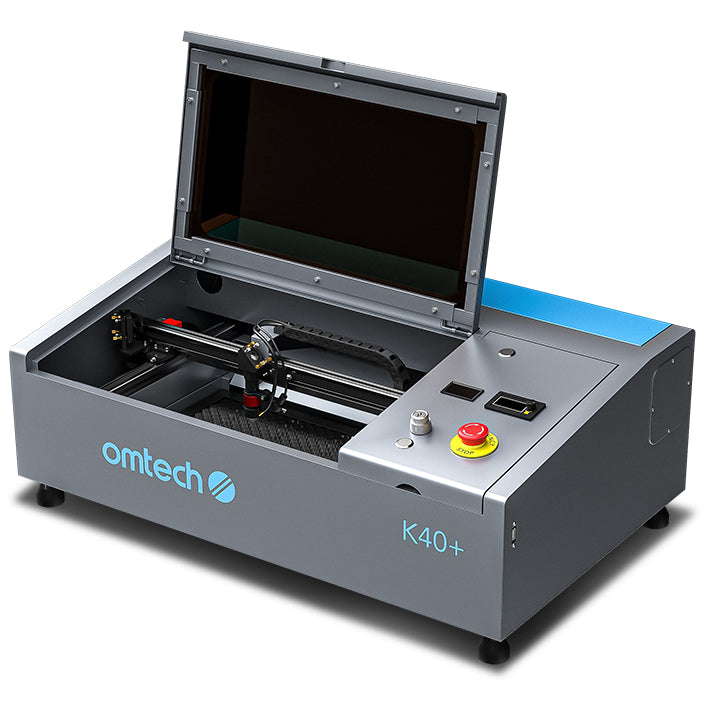

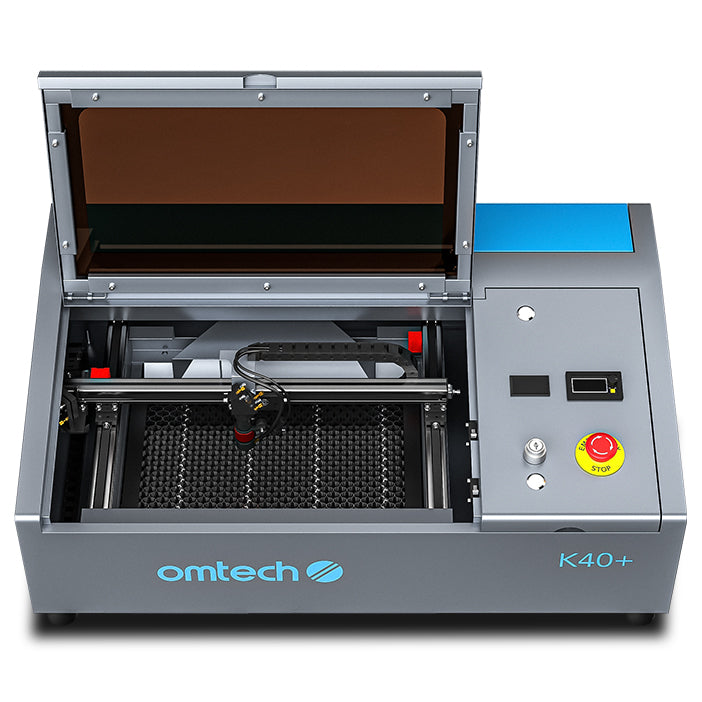

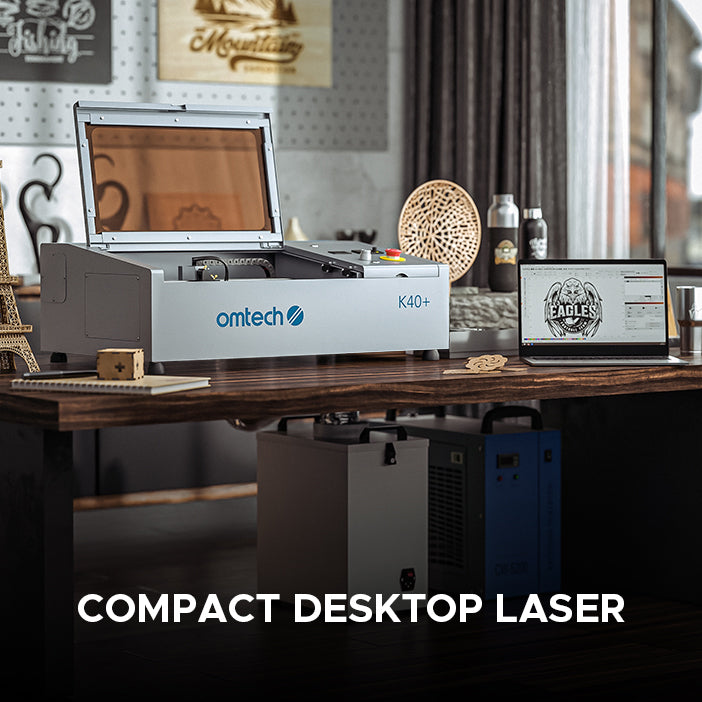

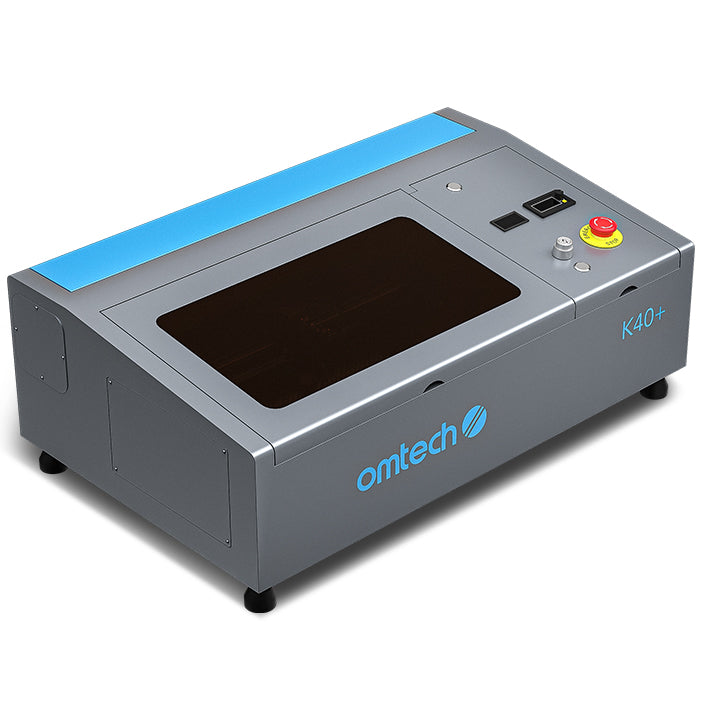

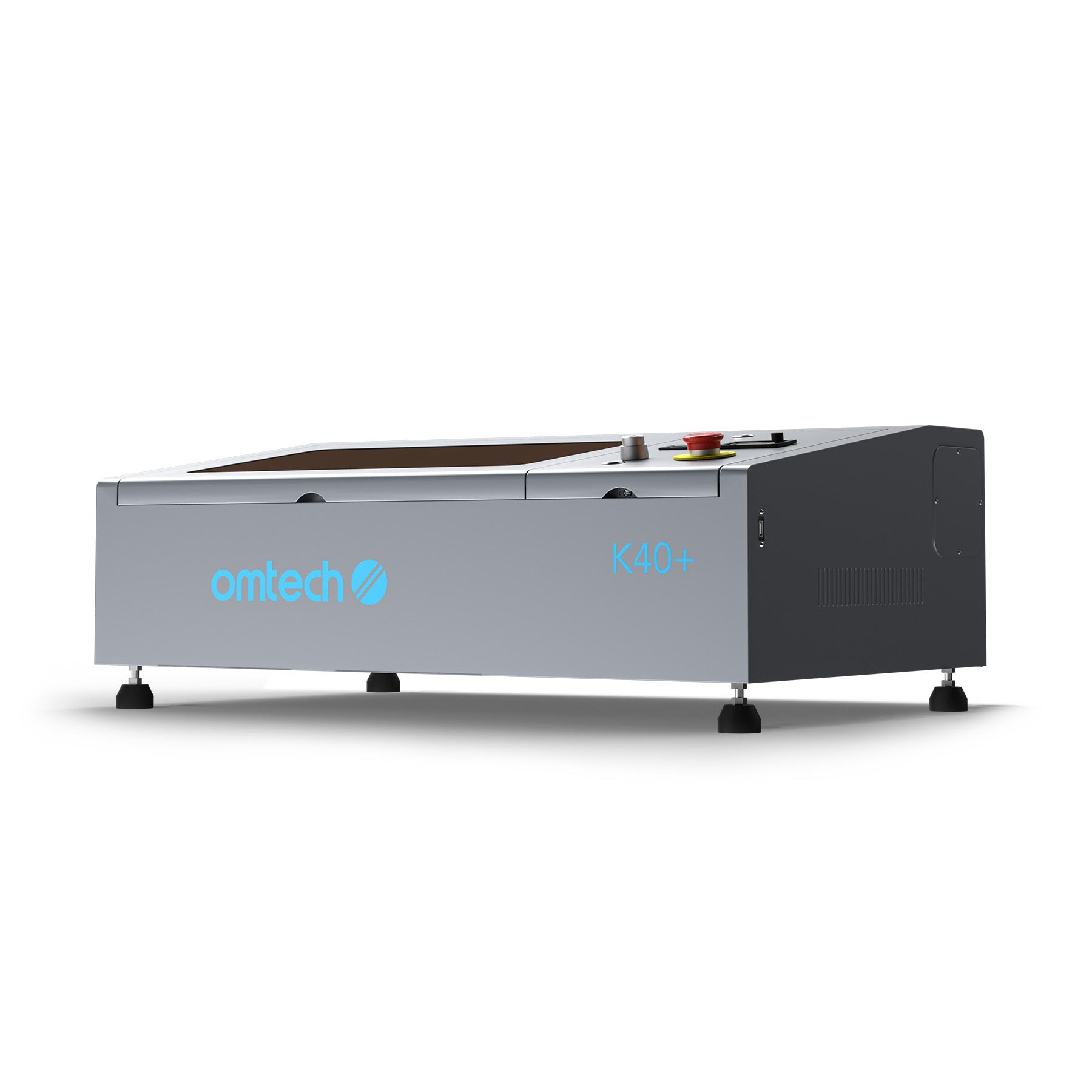

Compact Desktop Laser
The OMTech 40W CO₂ laser engraving machine combines sleek design with compact dimensions (81×50×25 cm) and a lightweight 23 kg build—ideal for beginners and tight workspaces. This desktop-sized engraving machine fits seamlessly into any home or hobby setup.

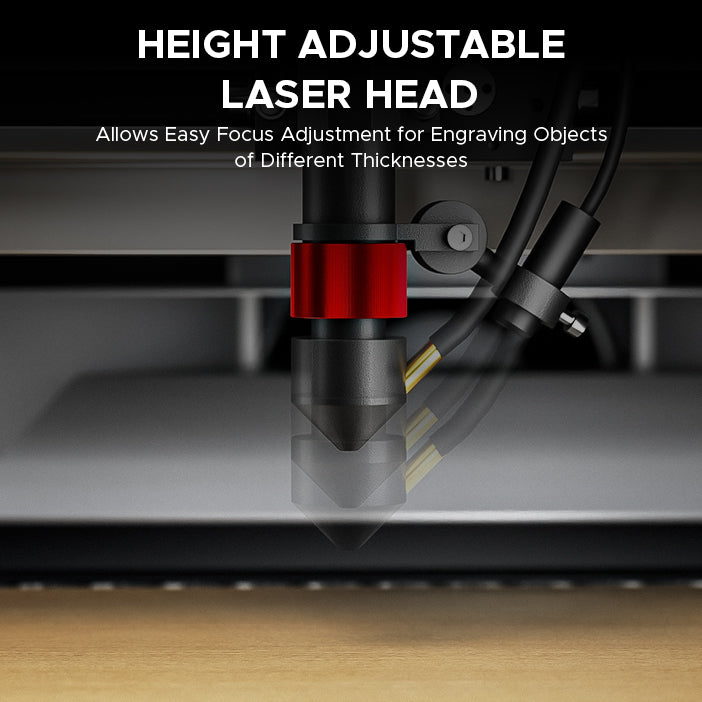

Height-Adjustable Laser Head
The laser head of our 40W CO₂ laser cutter and engraver offers a 30 mm height adjustment range for materials of varying thickness. This ensures optimal focus, engraving precision, and reliable performance for every project.

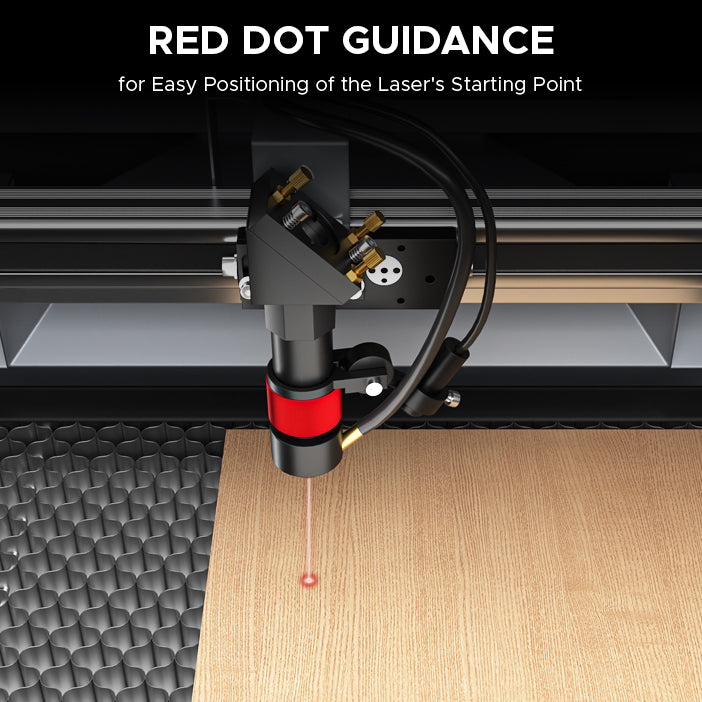

Laser Pointer for Positioning
Our OMTech laser engraving machine features an integrated red dot pointer, letting you quickly and accurately position your 40W CO₂ laser for cutting or engraving. This saves time and improves accuracy from the very first pass.

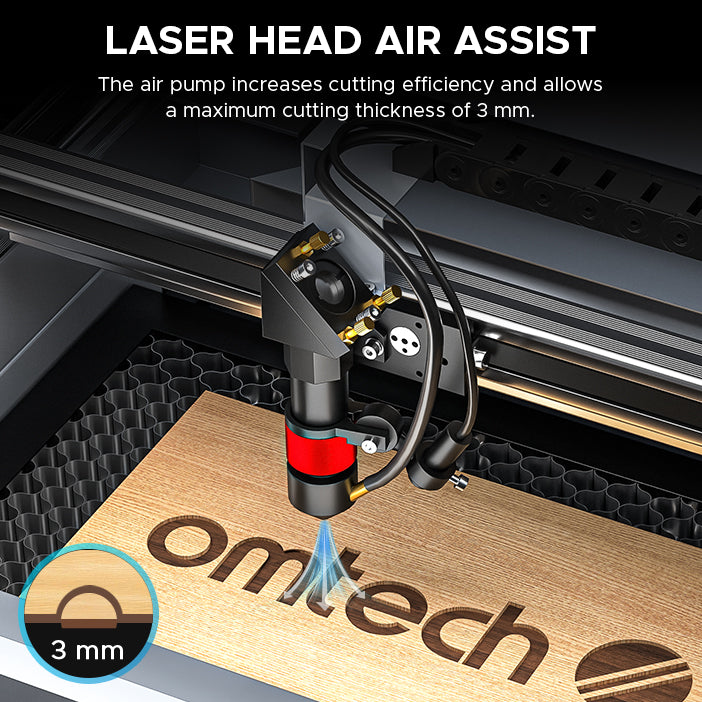

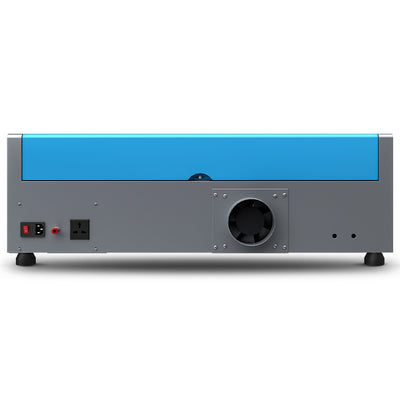

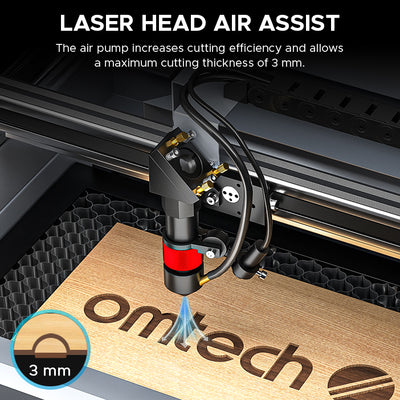

AIR ASSIT & EXHAUST FAN
The built-in air assist and exhaust fan blow away debris and smoke to make sure your design is always crisp and clear

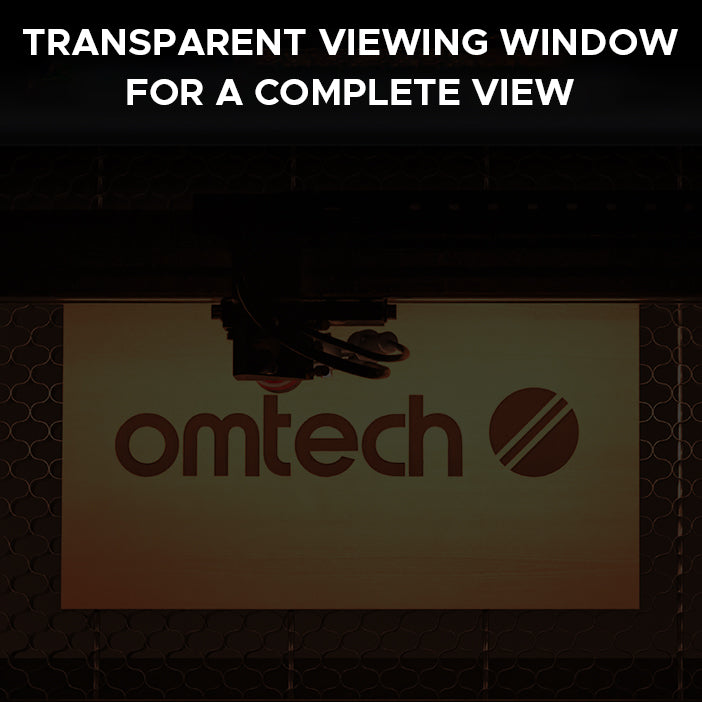

Enlarged Viewing Window
The flame-retardant viewing window ensures safety, clear visibility, and protection from heat and laser radiation.

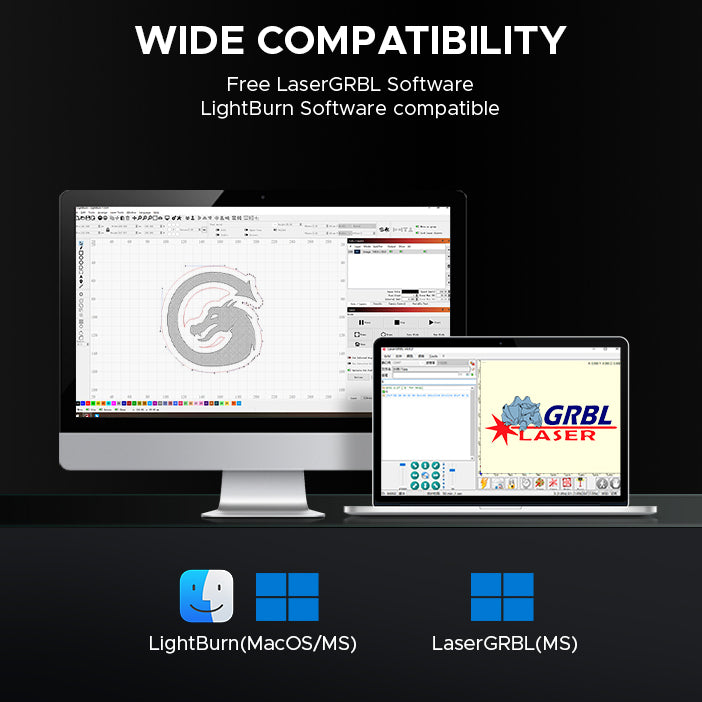

Pre-installed LaserGRBL
LaserGRBL simplifies design, boosts productivity, and is beginner-friendly.

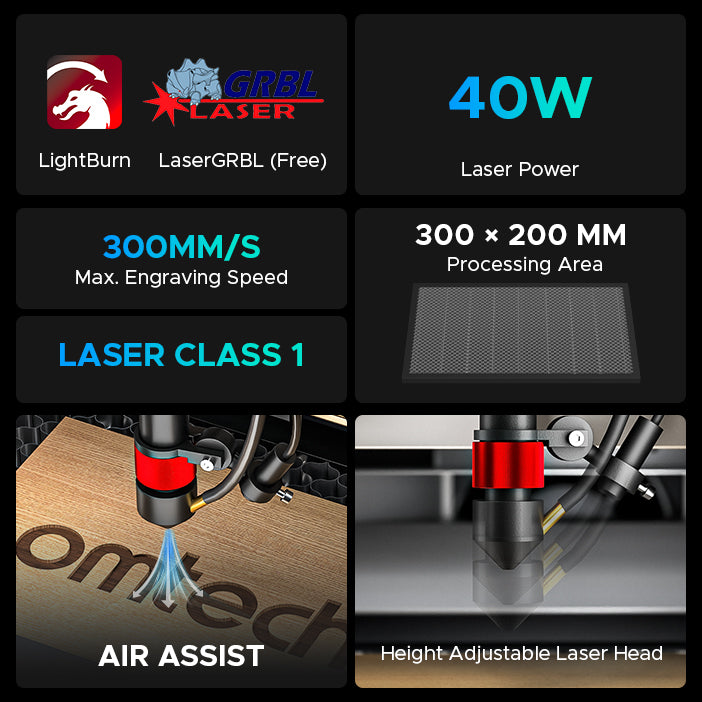

SPECS
-
Laser Output
40W
-
Overall Dimensions
810 x 500 x 250mm
-
Package Dimensions
920 x 620 x400 mm
-
Net Weight
23 kg
-
Focus Adjustment
Manual
-
Engraving Area
300×200 mm
-
Max. Engraving Speed
300 mm/s
-
Max. Engraving Depth
7 mm (walnut); 13mm (acrylic)
-
Positioning Accuracy
±0.2 mm
-
Laser Tube Length
720 mm
-
Laser Tube Diameter
50 mm
-
Water Pump Power
75W
-
Compatible Software
LightBurn (Windows, MacOS), CADLaser, CorelLaser
-
Certification
CE, FDA
-
Warranty
2-Year Warranty
-
Input Power
220 V~ 50 Hz
-
Laser Wavelength
10640 nm
-
Lifespan of Laser Tube
2000 hrs. ( <40% power) / 1200 hrs. (40%–70% power) / 600 hrs. ( >70% power)
-
Connection / Transmission
USB Cable
