CO2 Laser Alignment Tool for CO2 Laser Engraver Mirror Alignment

Save A$6.60
/
Incl. GST
Tax included.

Download the Manual and Instruction

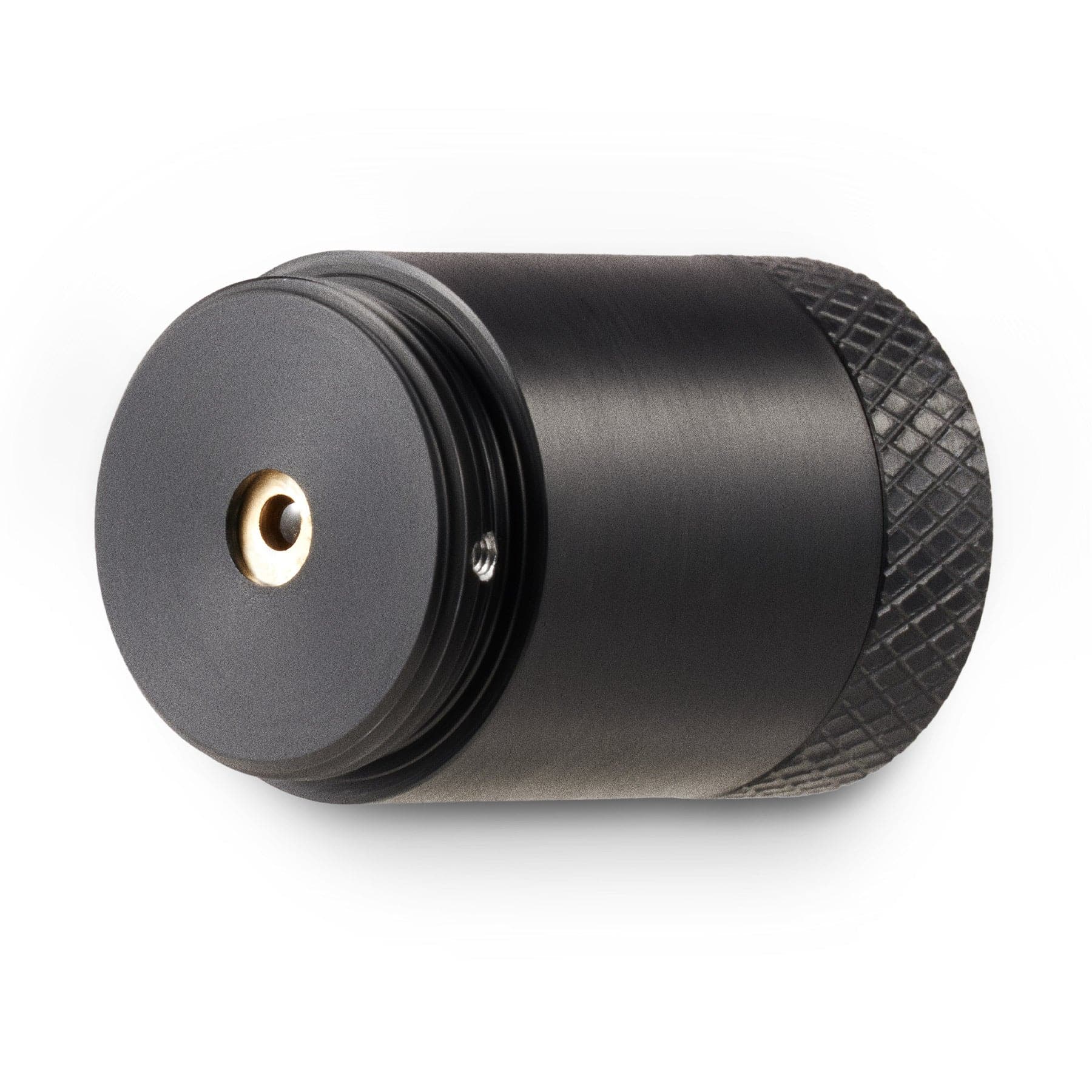

• 1.5" x 0.94" (37 x 24 mm) overall dimensions

• 2.1 oz. (60 g) overall weight

• Laser Wavelength: 650 nm

• Rated Power: 5mW

• Battery Type: CR1632 Lithium

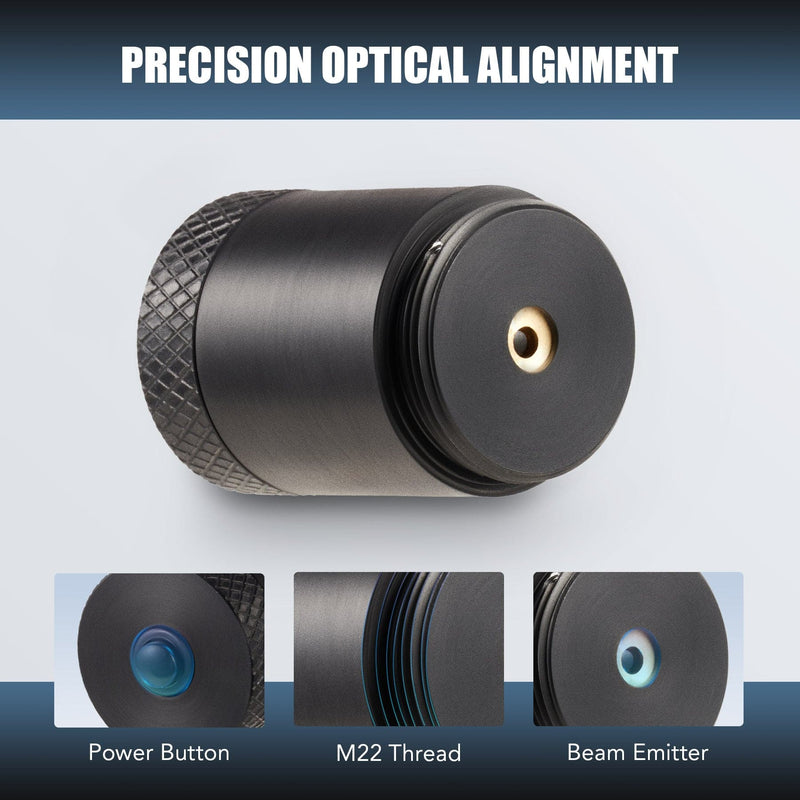

• Threading: M22 x 1

• Compatible with OMTech CO2 Laser Engravers 50W and above (except the AF2028-80 - 80W 20x28 inch with autofocus)

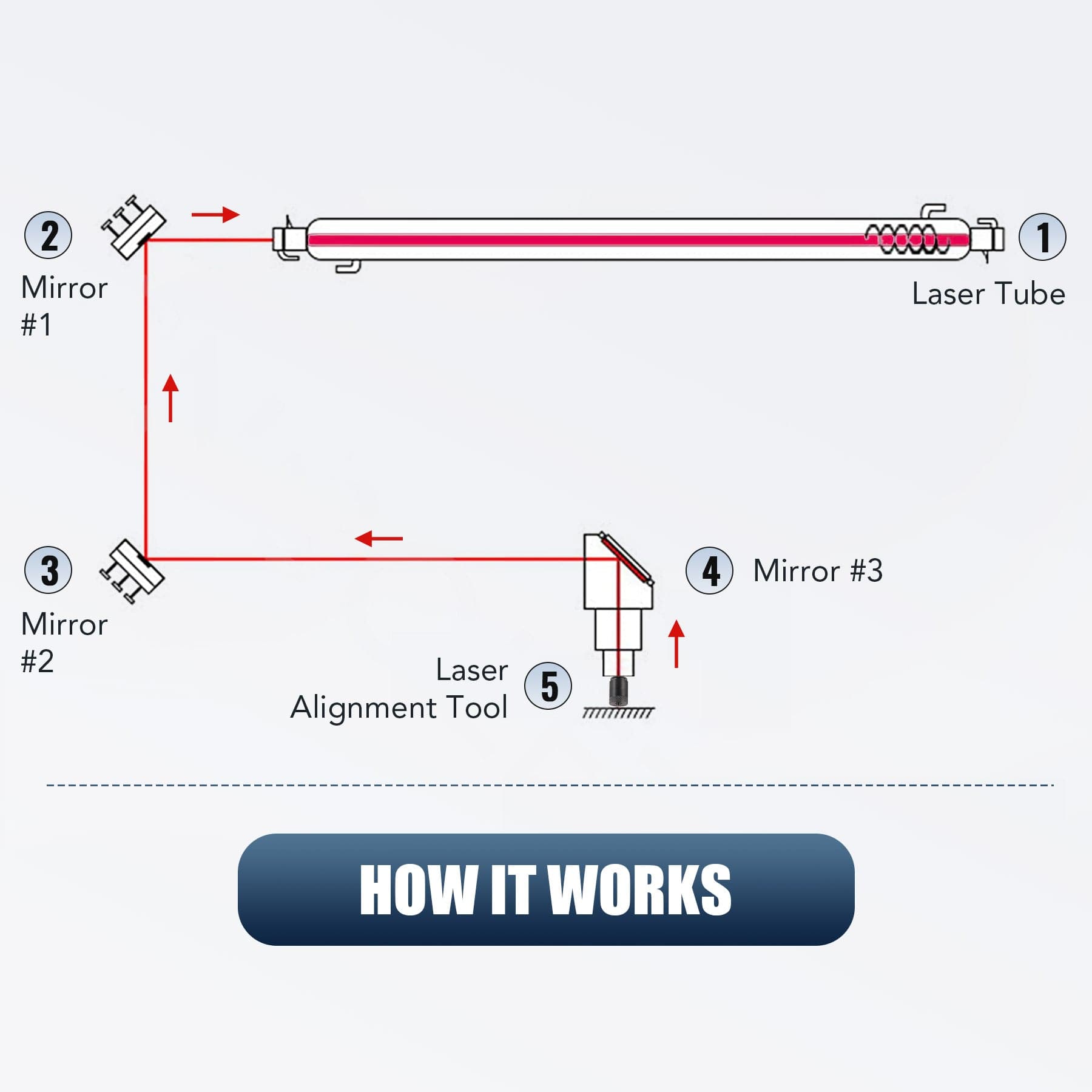

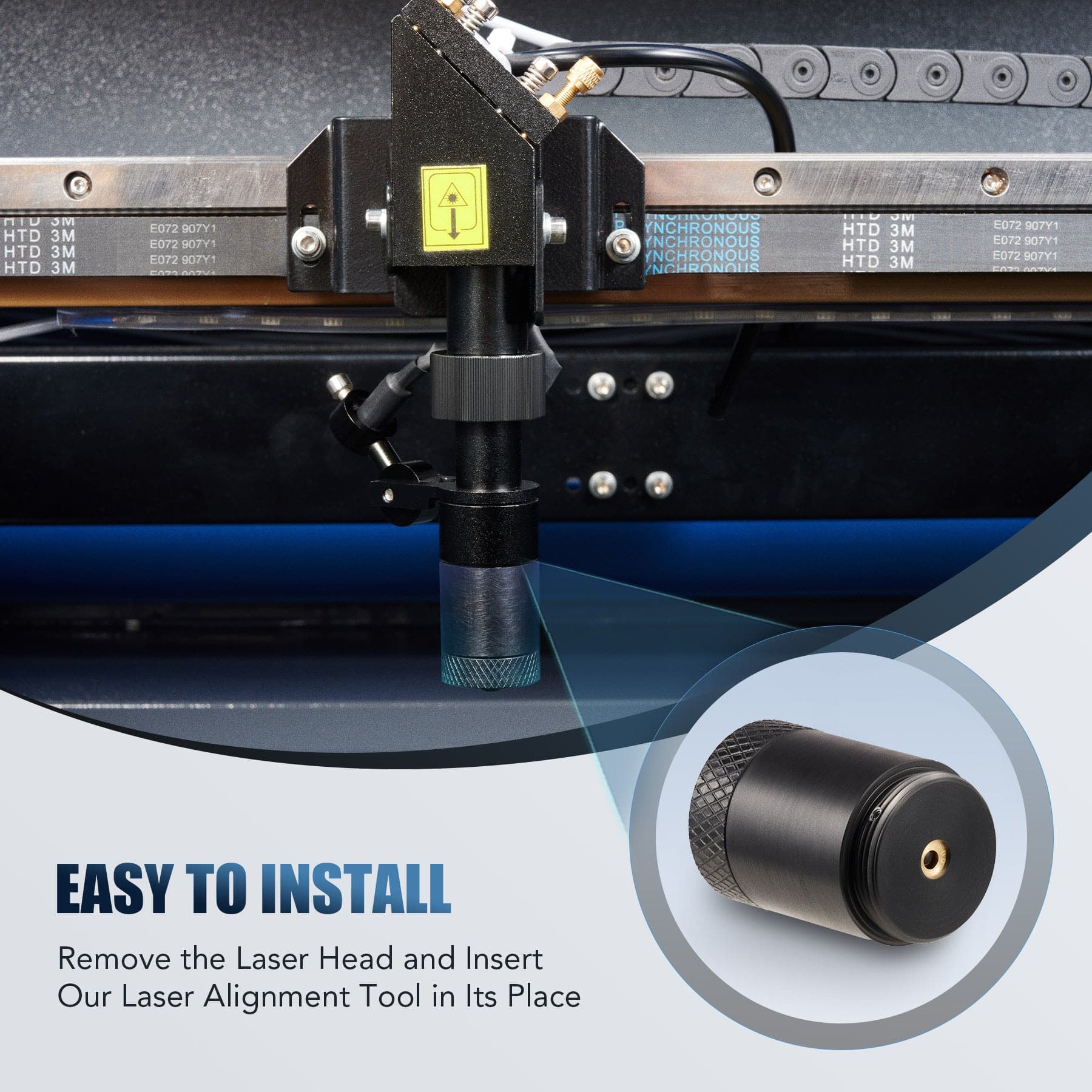

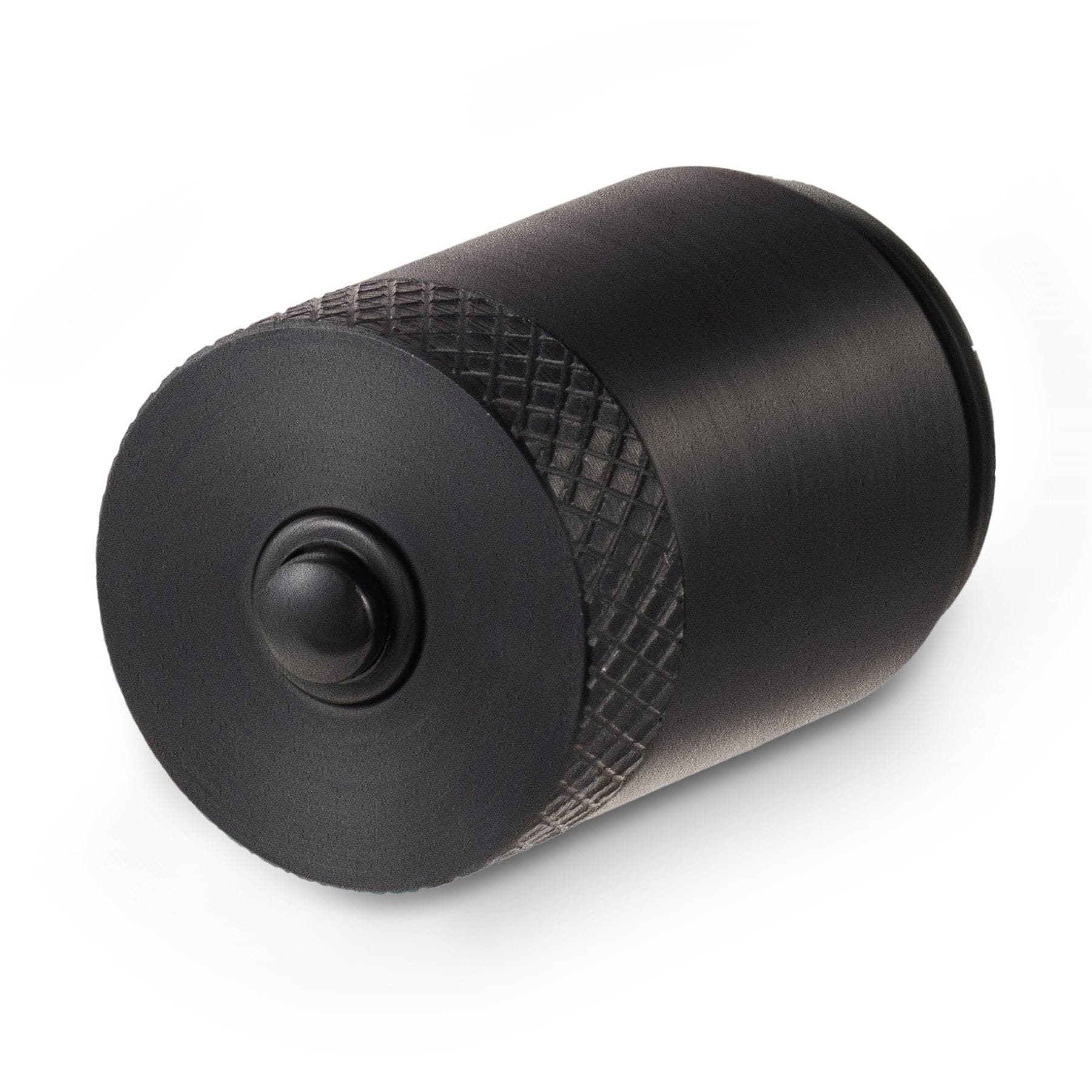

• Simply remove your laser engraver's focal lens housing and replace it with this laser alignment tool using the screw-in threading, put on your protective eyewear, press the power button, and start aligning the laser mirrors in reverse order. Once you're done, just turn it off, replace your focal lens, and you're ready to get back to engraving! A CR1632 battery comes included for your immediate use.

• This tool does not replace the scorch method of aligning your 1st mirror. Mirror 2 can be aligned using the scorch method or with this alignment tool.

• 1 x Industrial Water Chiller Machine

• 1 x Power Cord

• 1 x Alarm Signal Output Plug

• 1 x Spare Fuse

• 1 x User Manual

• No need to worry! We offer a 1-year warranty on this alignment tool.

• With the OMTech Laser Alignment Tool, you can visualize the laser path and make precise adjustments to improve the quality and speed of your laser engraving projects in less time! Take greater control over your laser cutting and engraving work with this dependable CO2 laser alignment tool from OMTech Laser!

Ensure pinpoint accuracy for your laser projects with the OMTech CO₂ laser mirror alignment tool — essential laser alignment equipment for CO₂ engravers. This easy‑to‑use CO₂ laser alignment tool installs directly into your machine’s lens housing, helping you quickly and safely align mirrors for optimal performance. Powered by a 5 mW red laser and included CR1632 battery, it fits OMTech CO2 laser engravers 50 W and above(except the AF2028-80 - 80W 20x28 inch with autofocus). With precise alignment, you’ll enjoy cleaner cuts, sharper engravings, and consistent results from your CO₂ laser every time.

FAQ

This co2 laser alignment tool is designed to help you accurately align the mirrors in your CO₂ laser engraver, ensuring precise and efficient laser cutting and engraving.

The tool is compatible with OMTech CO2 Laser Engravers 50W and above, except the AF2028-80 (80W 20x28 inch with autofocus).

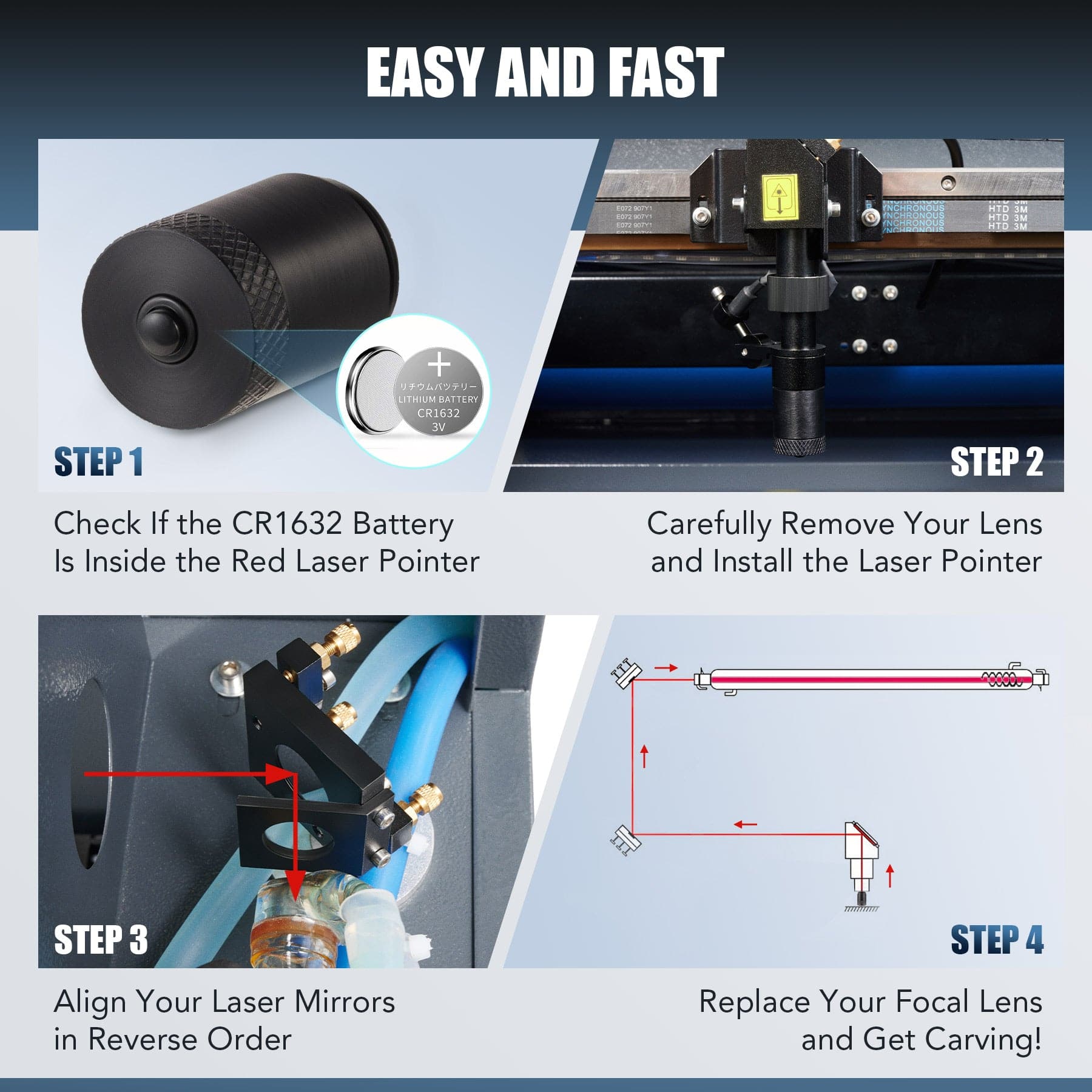

Remove your laser's focal lens housing, screw in the alignment tool, wear protective eyewear, press the power button, and align the mirrors in reverse order. Once finished, replace the focal lens and resume engraving.

No. It does not replace the scorch method for aligning the 1st mirror. Mirror 2 can be aligned either using the scorch method or this laser alignment equipment.

The tool measures 1.5" x 0.94" (37 x 24 mm), weighs 2.1 oz. (60 g), uses a 5mW, 650 nm laser, and comes with a CR1632 lithium battery included.

Yes. This laser machine alignment tool comes with a 1-year warranty for peace of mind.
