30W Galvo Fibre Laser Marking Machine with Autofocus

Name: 30W Galvo Fibre Laser Marking Machine with Autofocus | F30C
Brand: OMTech AU
SKU: FMM-M3AF-AU&USB-LIBU-01
Price: 3299.99 AUD
Availability: InStock

Chats with Experts

Black Friday Price + Free Lightburn !

Machine

Price Save A$2,200

Incl. GST

Quantity

Tax included.

Free Shipping Free & fast shipping from Australia

2-Year Warranty Learn more

Product ID: FMM-M3AF-AU

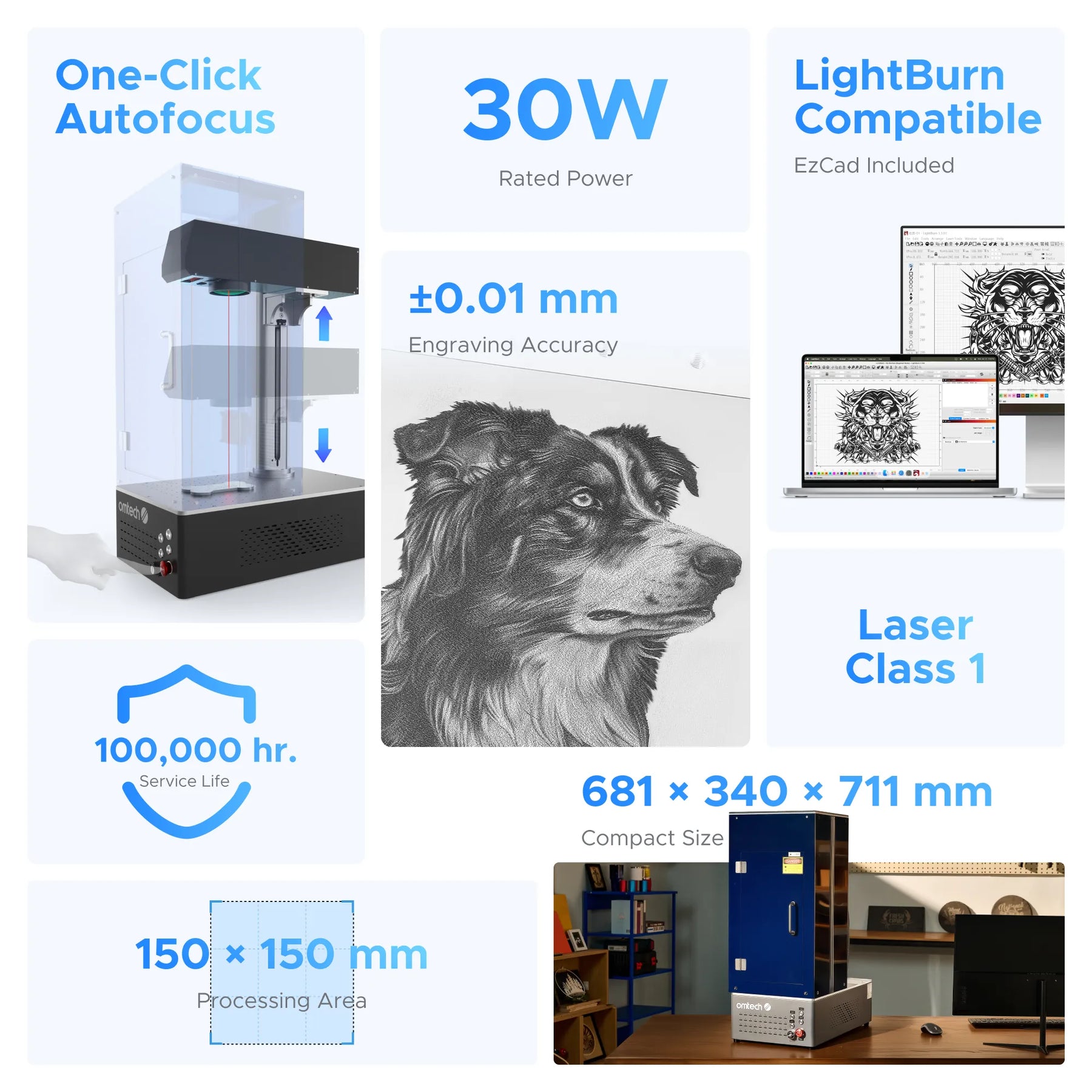

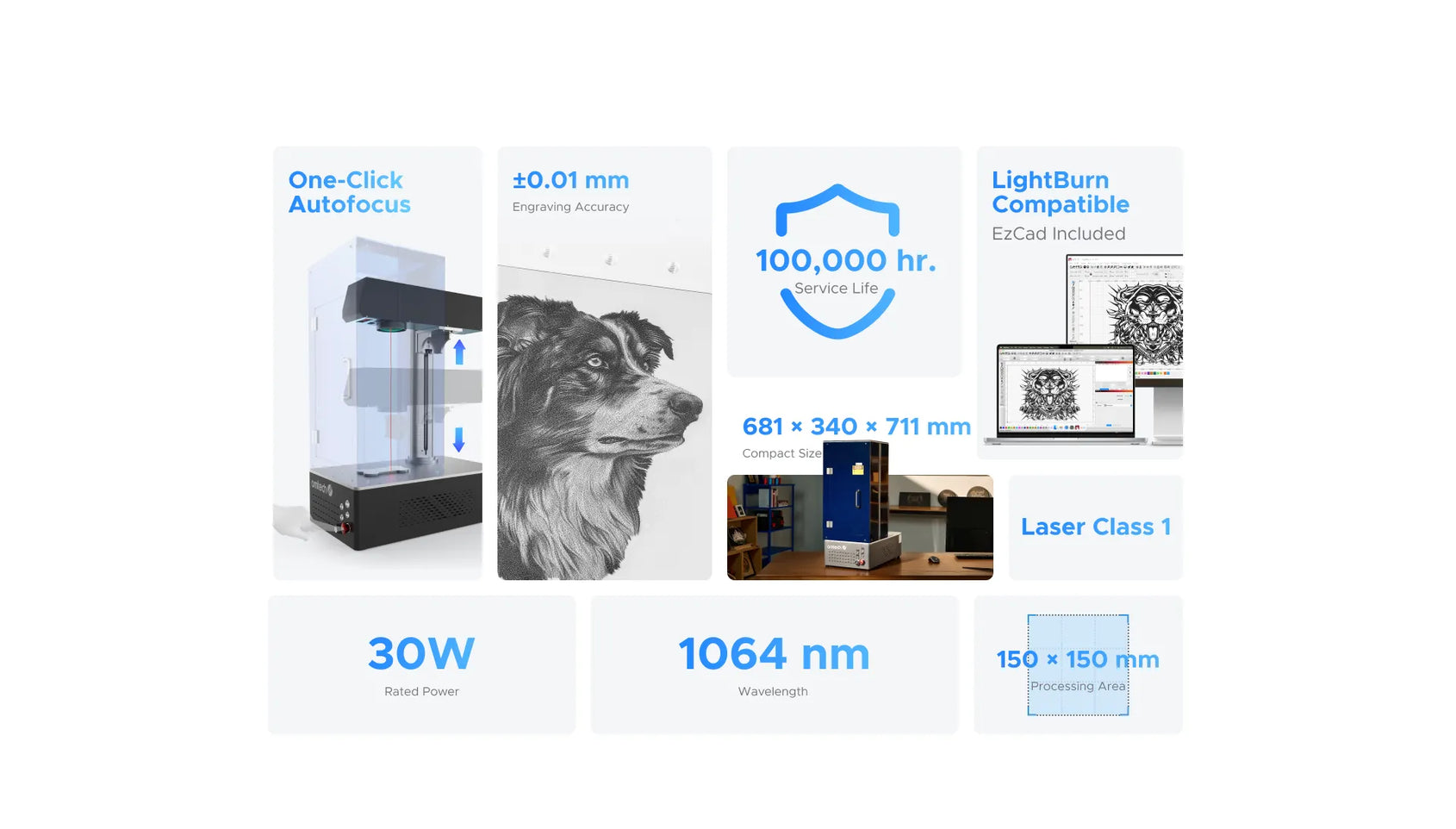

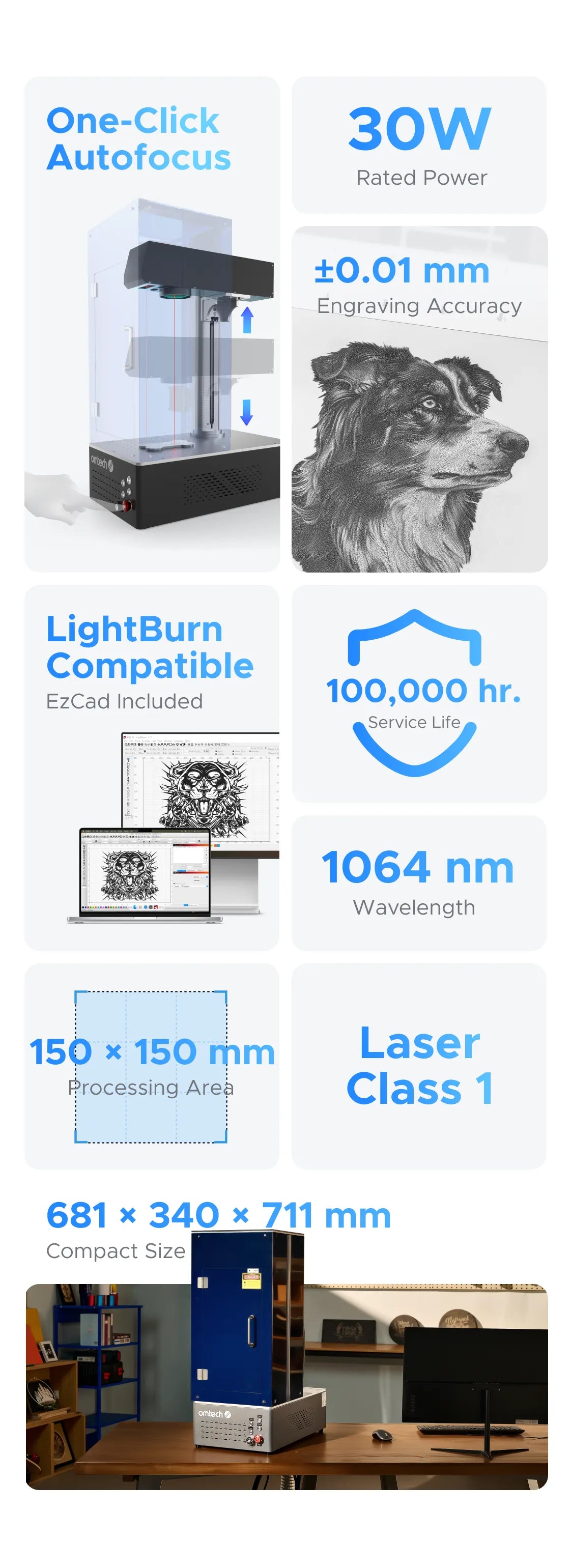

Meet the OMTech Galvo 30W, a high-speed 30W laser marking machine designed for precision and performance. This 30W fibre laser operates at up to 10,000 mm/s, offering remarkably fast and accurate marking on metals like stainless steel, aluminium, and titanium. Equipped with an intelligent autofocus system, the 30W galvo fibre laser machine ensures consistent focus across jobs, while its compact design and durable build deliver reliability and power in a small footprint.

Specs

About the Laser	Laser Power: 30W Laser Wavelength: 1064 nm Laser Frequency: 30-60 kHz Pulse Width: 80-120 ns Field Lens Focal Length: 210 mm Processing Area: 150 x 150 mm Workbed Area: 250 x 340 mm Max. Engraving Speed: 393.7 ips (10,000 mm/s) Max. Engraving Depth: 0.03 mm Positioning Accuracy: ±1 mm Marking Accuracy: ±0.01 mm Est. Laser Service Life (MTTF): 100,000 hr. Operating Temp.: 32-104°F (0-40°C) Operating Software: EzCad2 for Windows 7, 8, 10, & 11 Supported Image Formats: .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif Overall Dimensions: 68 x 34 x 71 cm Net Weight: 24.5 kg
Package List	1x Control Box with Laser Arm 1x Support Column 1x Power Cord 1x USB Cable 1x USB Flash Drive 2x Laser Keys 1x Ruler 1x Hex Wrench Set 2x Position Lock Bars 1x Installation Screw Set 1x Pair of Safety Goggles 1x Remote Control Terminal 1x Screwdriver 1x Manual

About the Laser

Laser Power: 30W

Laser Wavelength: 1064 nm

Laser Frequency: 30-60 kHz

Pulse Width: 80-120 ns

Field Lens Focal Length: 210 mm

Processing Area: 150 x 150 mm

Workbed Area: 250 x 340 mm

Max. Engraving Speed: 393.7 ips (10,000 mm/s)

Max. Engraving Depth: 0.03 mm

Positioning Accuracy: ±1 mm

Marking Accuracy: ±0.01 mm

Est. Laser Service Life (MTTF): 100,000 hr.

Operating Temp.: 32-104°F (0-40°C)

Operating Software: EzCad2 for Windows 7, 8, 10, & 11

Supported Image Formats: .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif

Overall Dimensions: 68 x 34 x 71 cm

Net Weight: 24.5 kg

Package List

1x Control Box with Laser Arm
1x Support Column
1x Power Cord
1x USB Cable
1x USB Flash Drive
2x Laser Keys
1x Ruler
1x Hex Wrench Set
2x Position Lock Bars
1x Installation Screw Set
1x Pair of Safety Goggles
1x Remote Control Terminal
1x Screwdriver
1x Manual

YOU CAN ENGRAVE THESE MATERIALS

Acrylic
Hard Plastics
Brick
Granite
Marble
Tile
Aluminum
Gold
Silver
Stainless Steel
Brass
Titanium
Tungsten

YOU CAN ENGRAVE THESE MATERIALS

Acrylic
Hard Plastics
Brick
Granite
Marble
Tile
Aluminum
Gold
Silver
Stainless Steel
Brass
Titanium
Tungsten

FAQs

The OMTech Galvo 30W is designed for high-precision metal marking, making it ideal for stainless steel, aluminium, brass, titanium, coated metals, and more.

With a marking accuracy of ±0.01 mm and a maximum engraving speed of 10,000 mm/s, this 30W galvo fibre laser delivers exceptional detail, even for intricate logos, serial numbers, barcodes, and micro-text.

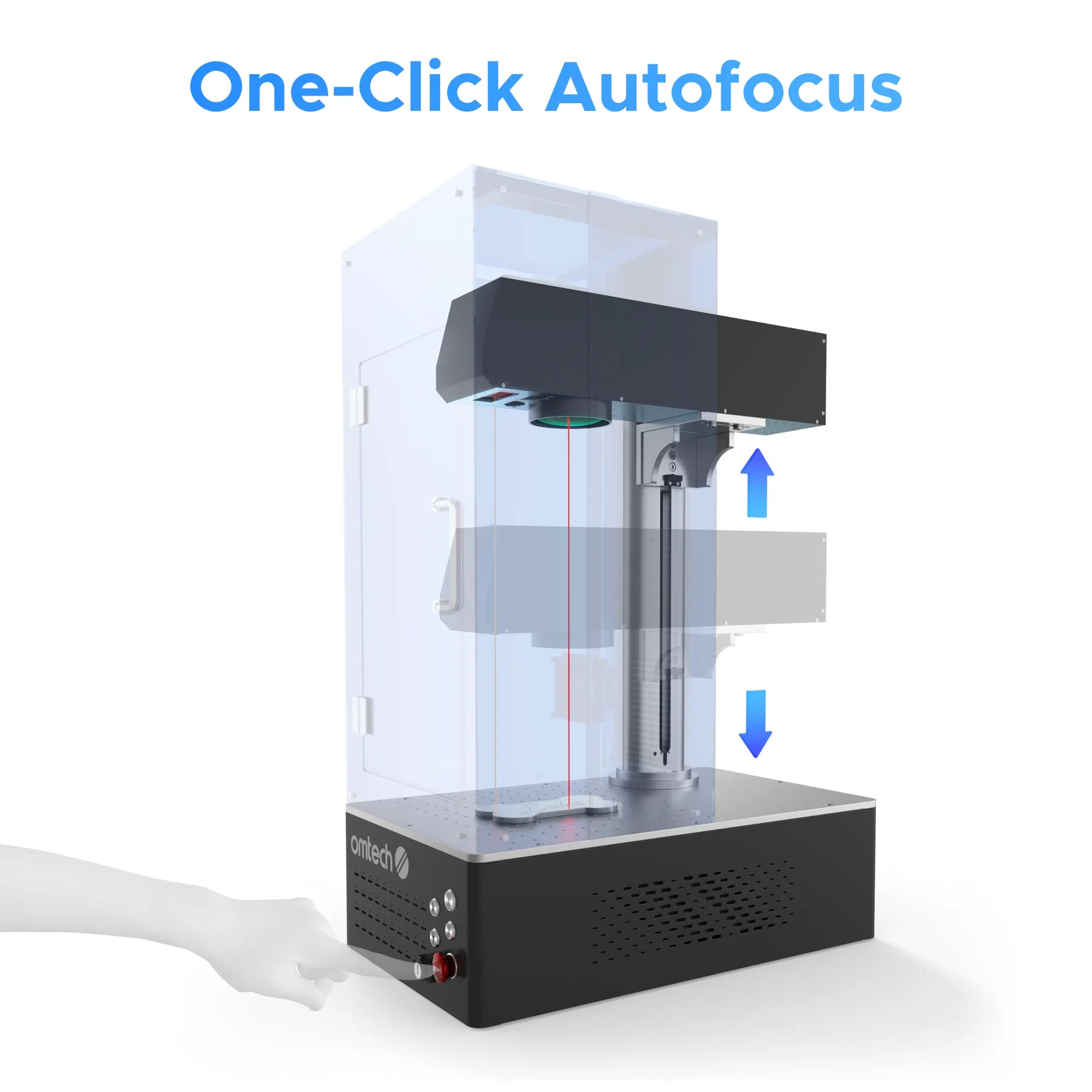

Yes. This model features an intelligent autofocus system that quickly adjusts the focal distance for you, ensuring clean and consistent results without manual measurement.

A 30W galvo fibre laser uses galvanometric mirrors to steer the beam at extremely high speeds, enabling rapid marking without moving the workpiece. This offers faster performance and superior precision for production environments.

It provides a maximum engraving depth of 0.03 mm, which is ideal for permanent metal marking, branding, and identification work. For deeper cuts, multiple passes can be applied.

Yes. With its compact footprint (68 × 34 × 71 cm) and a net weight of just 24.5 kg, this machine fits comfortably in small workspaces while still delivering industrial-level performance.

This model can be paired with a compatible rotary axis (sold separately), enabling engraving on cylindrical items such as rings, tumblers, and tools.
