30W MOPA JPT Laser Cutting Machine for Colored Metal Engraving & Metal Cutting with 175mm×175mm Working Area | M-30

Chats with Experts

30W MOPA JPT Laser Cutting Machine for Colored Metal Engraving & Metal Cutting with 175mm×175mm Working Area | M-30

Black Friday Price + Free Birchwood Plywood Sheets (10pcs)！
Save A$8,200.01
/
Incl. GST
Tax included.
Free & fast shipping from Australia
Learn more
Product ID: FMM-J3W2-US

Manual Focus

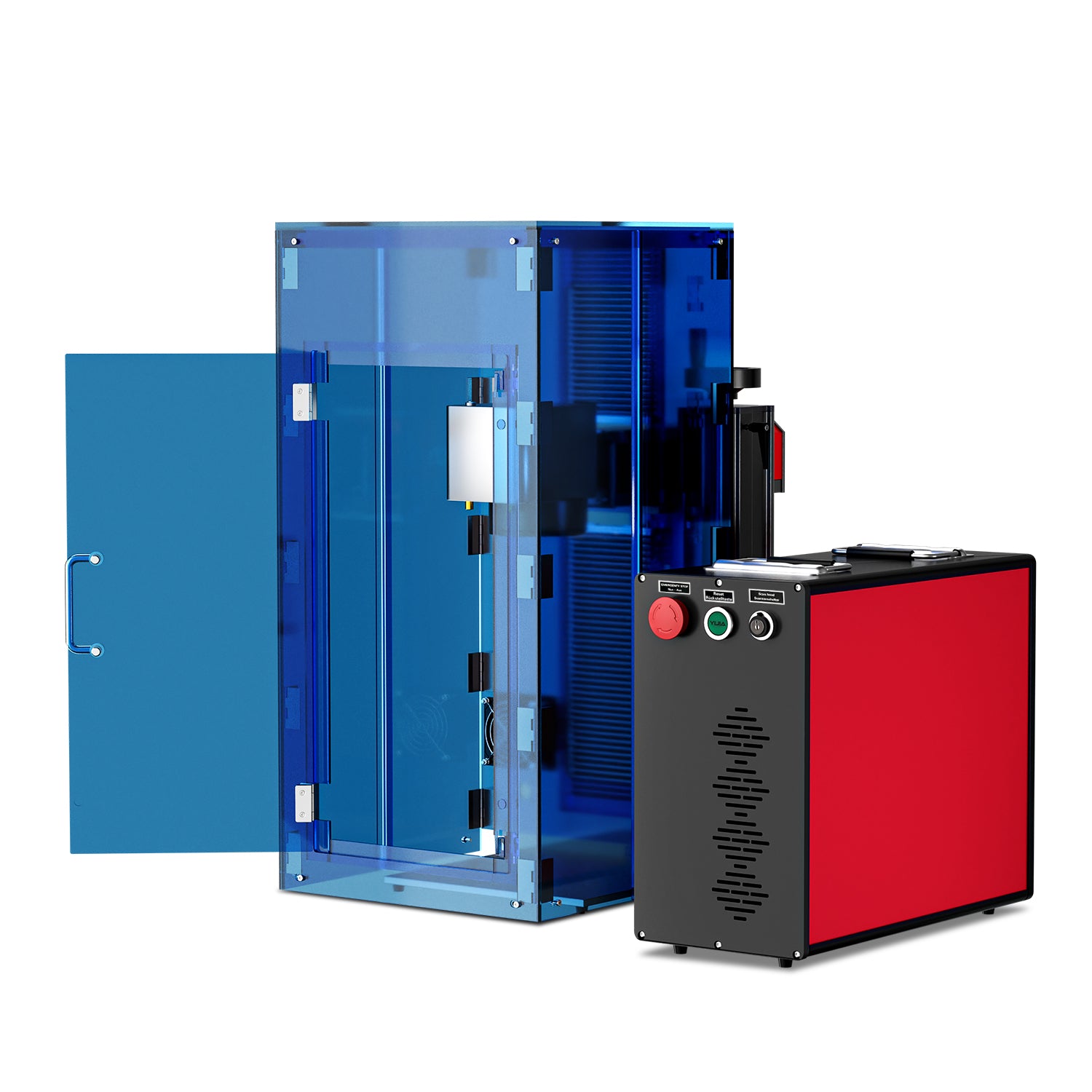

Discover the OMTech M-30, a high-precision 30W MOPA laser machine powered by a JPT M7 solid-state source. This jpt mopa 30w laser machine provides unmatched stability, with over 100,000 hours of expected operation, while allowing independent control of pulse frequency and width. Its Sino-Galvo scanning system and Fθ lens deliver ultra-fast, accurate marking across a 175 × 175 mm bed. As a 30W fibre laser marking machine, it's capable of full-colour engraving on metals like stainless steel and titanium, making it ideal for professional engraving and industrial marking projects.

FEATURES
JPT M7 Solid-State 30W Laser

Enjoy stable dependable operation with an MTTF over 100,000 hours thanks to this engraver's solid-state JPT MOPA laser source. Its optical amplifier boosts the beam produced by the master oscillator, with independently adjustable pulse frequency and width to offer great versatility applicable to a wide range of materials.

Sino-Galvo Scanning Head

The laser arm's Sino-Galvo drive and scanning system provides outstanding accuracy and works with the Fθ lens to produce both fast and stable marking of flat surfaces at speeds as fast as 275.6 inches per second (7000 mm/s).

Fθ Field Lens

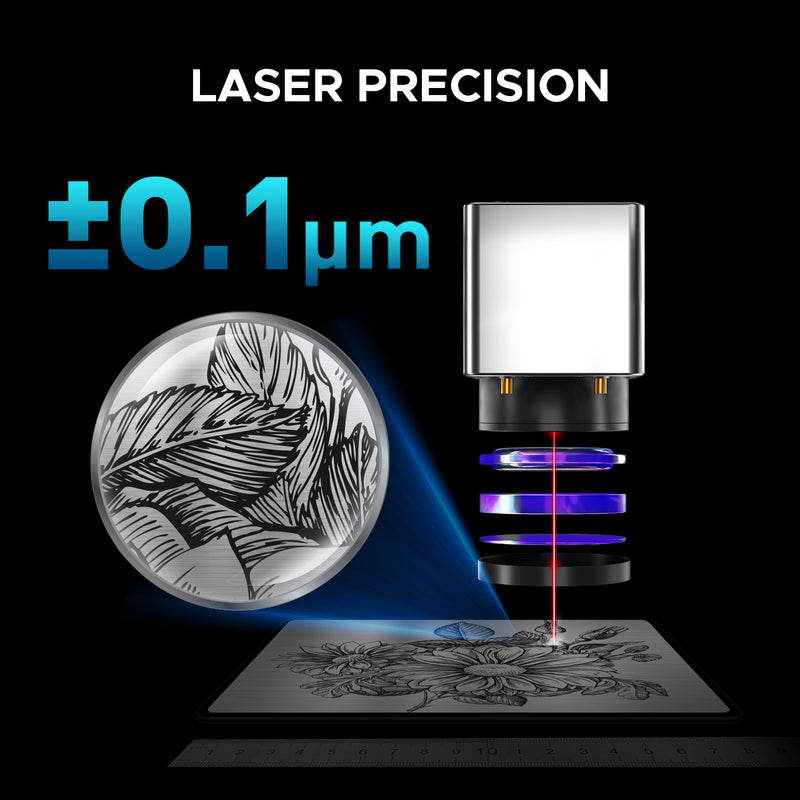

Our Fθ lens creates vivid markings on flat surfaces by maintaining a consistent, focused laser spot size across its 6.9″×6.9″ (175×175 mm) working area. Producing less than 1% distortion, it flawlessly executes intricate designs with unbelievable precision.

LightBurn Compatible (Not Included)

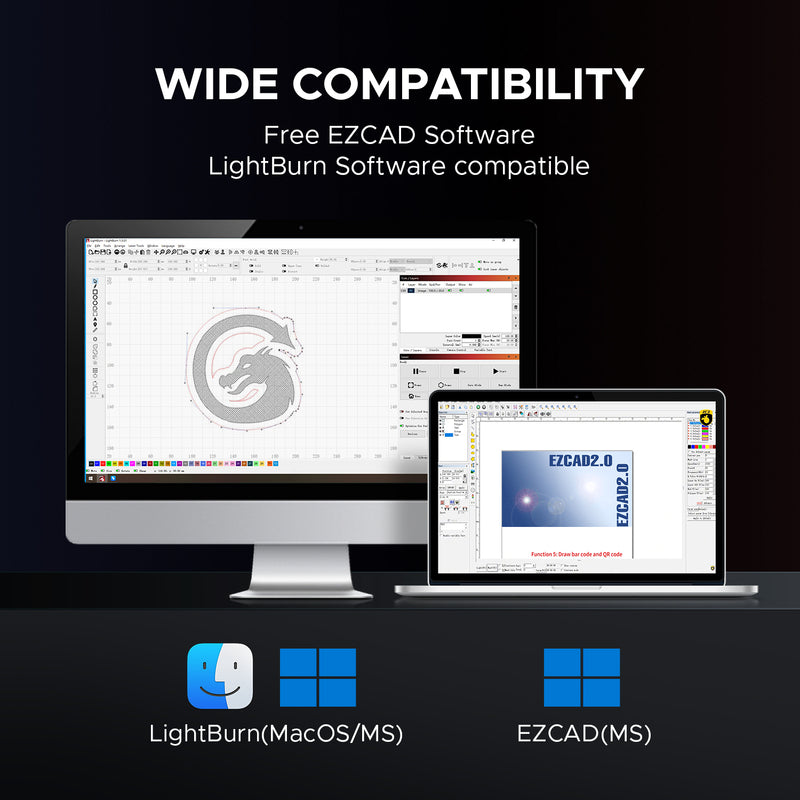

Your EzCad2-based fiber laser engraver works with LightBurn's latest galvo functionality on Windows, MacOS, and Linux systems to let you create even the most intricate patterns easily.

Safe & Secure Controls

Separately grounded for your safety, the scanner and laser source also have separate power controls.

The access key prevents any unauthorized use of your laser, and the large E-stop is ready in case of emergencies.

Red Dot Guidance

Visible laser pointers help make focusing quick and easy.

The scanning lens provides a clear, safe red light preview of your pattern's outline for convenient positioning.

Full Color Marking

Quickly and easily create dark marks on anodized aluminium or full color images and patterns on stainless steel, titanium, and chromium thanks to the easy frequency modulation allowed by this engraver's MOPA design.

Convenient Manual Focus

Achieve consistent focus with each & every material you work using the support column's helpful built-in ruler.

Rotate the focus-height wheel for fast, precise work!

DESIGNED AND ENGINEERED IN USA

• FDA Compliant

• CE Certification

• ISO9001 Quality Certification

2-YEAR WARRANTY

No need to worry! We offer a 2-year parts warranty on all machines

Tech Support

24/7 professional customer support and technical assistance

SPECS

  • Output Power

    30W

  • Laser Frequency

    1–4000 kHz

  • Marking Area

    6.9×6.9 in. (175×175 mm)

  • Max. Marking Speed

    275.6 ips (7000 mm/s)

  • Max. Engraving Depth

    0.002 in. (0.05 mm)

  • Beam Diameter

    7±0.5 mm

  • Min. Beam Quality (Max. M²)

    1.4

  • Pulse Width

    2–350 ns

  • Max. Pulse Energy

    0.8 mJ

  • Laser Wavelength

    1064 nm

  • Expected Service Life (MTTF)

    100,000 hr.

  • Provided Operating Software

    EzCad2

  • Compatible Operating Systems

    Windows XP, Vista, 7, 8, or 10

  • Net Weight

    30 kg

  • Dimensions

    35×59×69.2 cm

YOU CAN ENGRAVE THESE MATERIALS
  • Acrylic
  • Hard Plastics
  • Brick
  • Granite
  • Marble
  • Tile
  • Aluminum
  • Gold
  • Silver
  • Stainless Steel
  • Brass
  • Titanium
  • Tungsten
YOU CAN ENGRAVE THESE MATERIALS
  • Acrylic
  • Hard Plastics
  • Brick
  • Granite
  • Marble
  • Tile
  • Aluminum
  • Gold
  • Silver
  • Stainless Steel
  • Brass
  • Titanium
  • Tungsten

FAQs

The 30W MOPA laser uses a JPT M7 source that allows independent control of pulse width and frequency. This means greater flexibility for colour marking on metals such as stainless steel and titanium—something traditional 30W fibre lasers cannot achieve as effectively.

Yes. Thanks to its adjustable pulse settings, the JPT MOPA 30W laser can produce full-colour markings on stainless steel, titanium, and chromium, as well as crisp dark marks on anodised aluminium.

Absolutely. With a Sino-Galvo scanning head, high-precision Fθ field lens, and stable JPT MOPA laser source, this MOPA laser machine delivers professional-grade engraving and marking quality for metalworkers, jewellers, and industrial users.

This 30W fibre laser engraver reaches speeds up to 7,000 mm/s, offering fast and consistent performance for both detailed designs and high-volume marking.

The machine is EzCad2-based and compatible with LightBurn’s galvo version. Users can also run LightBurn on Windows, macOS, and Linux.

Yes. A red-dot pointer provides a visible preview of your pattern’s outline, making alignment and focusing simple and accurate.

Yes. The support column includes a built-in ruler, and the focus-height wheel lets you adjust the laser quickly for consistent marking across varying material thicknesses.

FREQUENTLY BOUGHT TOGETHER

Sold Out
LightBurn Software Download for CO2 and Fiber Laser Engraver
Save A$22
Sold Out
laser-machine-rotary-attachment
80mm-3-jaw-rotary-axis

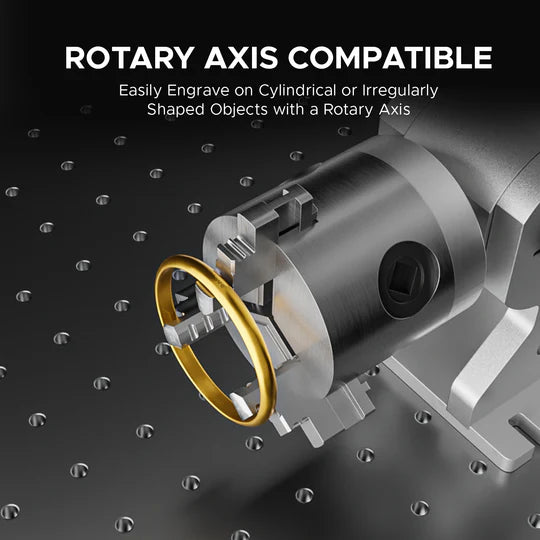

80mm Rotary 3 Jaw Axis Attachment for Laser Engraver Machine for Irregular-Shaped Objects (For Fiber Machines Only)
